KVERNELAND U-DRILL RANGE

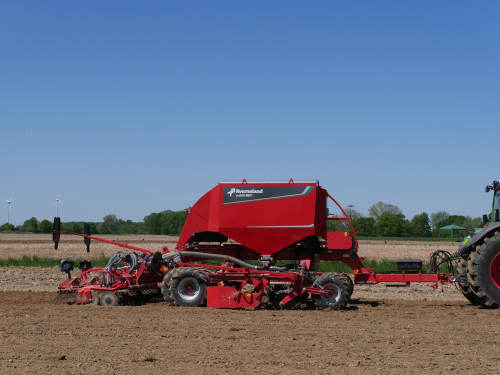

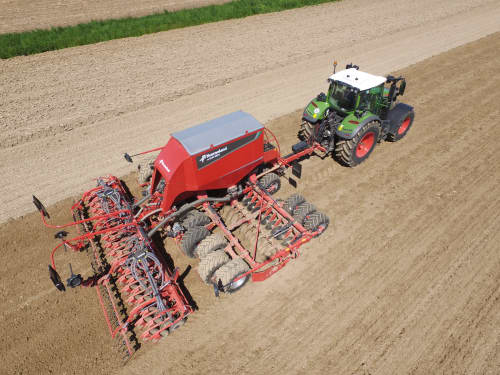

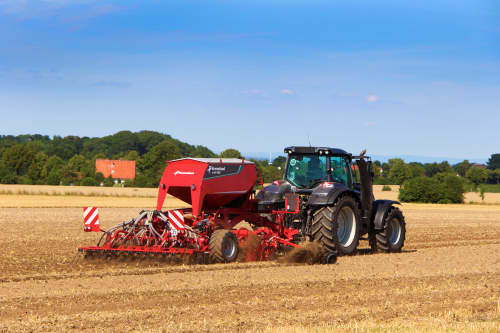

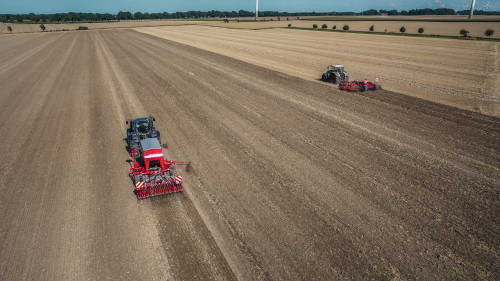

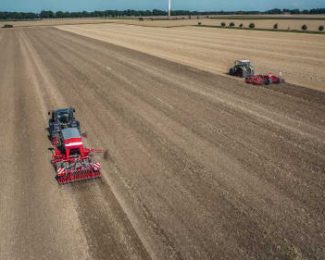

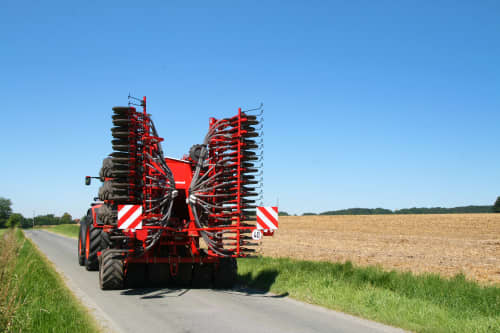

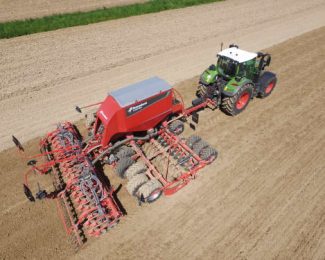

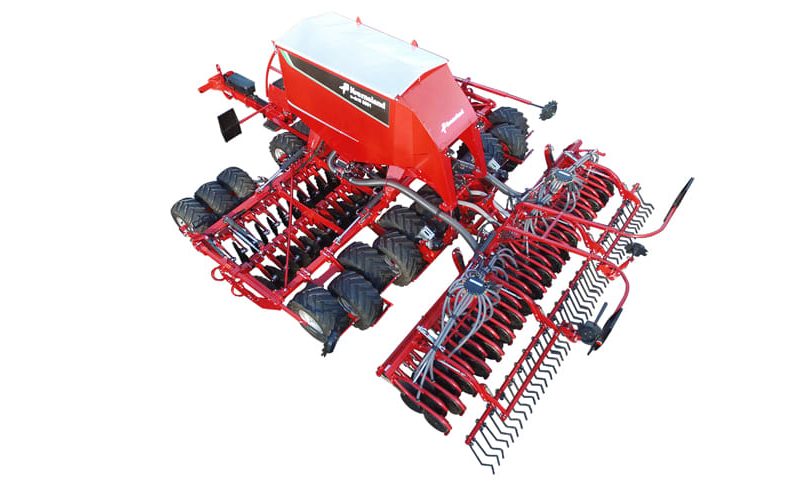

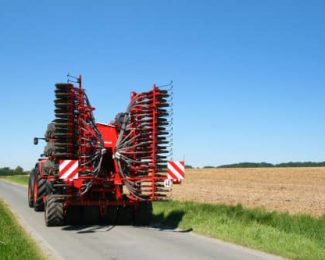

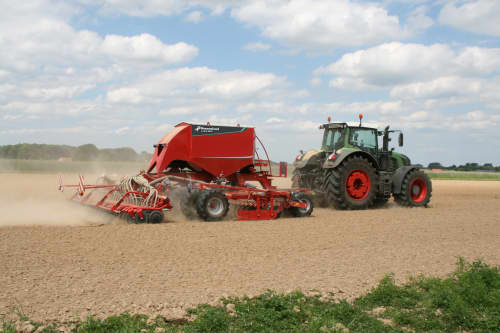

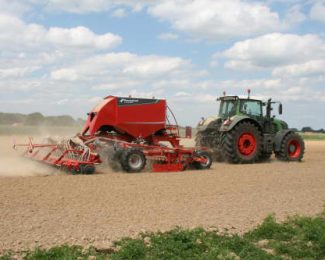

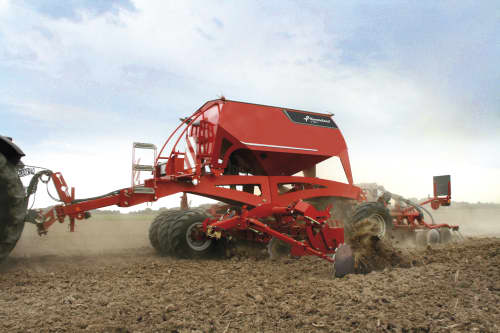

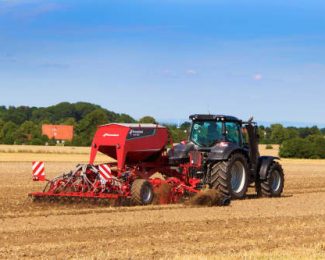

The U-Drill is a trailed seed drill combination available in 3.0m, 4.0m rigid and 4.0m and 6.0m folding to carry out seedbed preparation, levelling, reconsolidation, seeding and pressing in one pass. The focus in design has been especially given to high speed operation (10-18km/h) whilst ensuring a perfect seed placement.

With the Kverneland CD-coulter, two different row widths are possible. Depending on your requirements, you have the choice between 12.5cm and 16.7cm row distance.

The hopper can easily be filled using big bags and a front loader or telescopic handler. For the 6m version a filling auger is available. The hopper has a capacity of 3,000l (3/4m) respectively 4,350l (6m).

The U-Drill is extremely user-friendly: Being of course fully ISOBUS compatible, the driver is in full control of all data.  The drill is ready for GEOCONTROL in order to control application rate and half-width shut-off. In addition, only one double-acting valve ensures the fully automatic controlled head-land-management.

The U-Drill plus is also available for grain and fertiliser application.

Advantages

• High speed operation (10 – 18km/h)
• Perfect seed placement
• Modular frame concept for flexible adjustment to customers’ requirements
• Fully ISOBUS compatible
• Easy handling and maintenance
• Automatically controlled head-land-management

Model Working Width Row distance (cm) Hopper Capacity u-drill rigid 3.0m 12.5 / 16.7 3000 litres u-drill rigid 4.0m 12.5 / 16.7 3000 litres u-drill fold 4.0m 12.5 / 16.7 3000 litres u-drill fold 6.0m 12.5 / 16.7 4350 litres

Please click the link above to download the latest brochure.
